Nauta Dryer

Wherever gentle but rapid mixing is the criterion for selection of blender/dryer Nauta Mixer/Dryer is the automatic choice.

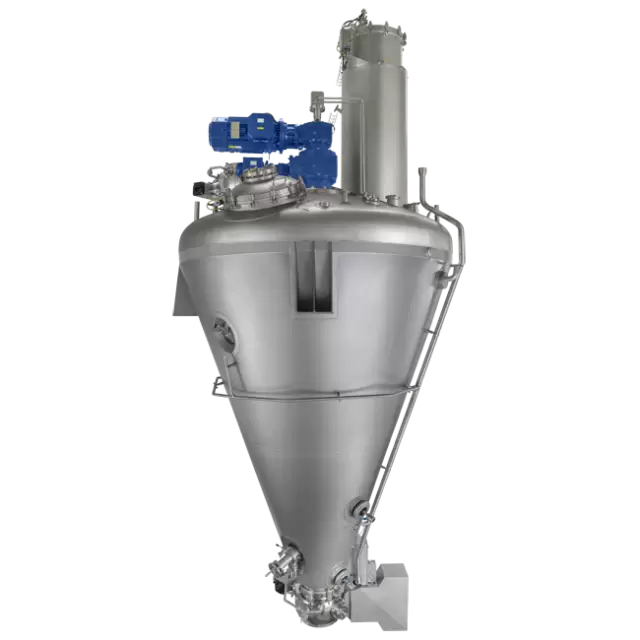

The Nauta Dryer consists of a vertical Conical Vessel , wherein a conical inclined screw feeds the product upwards and redirects it back towards the centre of the vessel.


THE ADVANTAGES OF THIS PARTICULAR METHOD OF BLENDING/DRYING :

  • Reduces the risks of lump forming<
  • Mixing is gentle
  • Lower driving power
  • Ease of cleaning
  • Ease of emptying the product
  • Benefits of Vacuum Contact Drying

The Nauta Vertical Ribbon Blender has a unique design consisting of an outer helical ribbon alongwith an inner screw imparting proper mixing motion. A high mixing accuracy is achieved & the conical shape facilitates mass flow discharge

Nauta Specifications
      A B C
Model Work Vol ltrs Total Vol ltrs major dia of cone straight ht of cone dia of screw Screw hp Swing Arm hp Screw rpm Swing Arm rpm
      mm mm mm
VND-500 500 750 1150 1400 300 5 1 30 1.5
VND-800 800 1200 1350 1740 300 5 1 30 1.5
VND-1000 1000 1700 1500 1990 300 7.5 2 30 1.5
VND-1500 1500 2200 1650 2240 300 7.5 2 30 1.5
VND-2000 2000 2800 1800 2490 300 7.5 2 30 1.5
VND-2500 2500 3600 1950 2740 300 10 2 30 1.5
VND-3000 3000 4500 2100 2990 300 10 2 30 1.5
VND-4000 4000 5800 2300 3240 350 12.5 2 30 1
VND-5000 5000 7500 2500 3570 350 12.5 2 30 1
VND-6000 6000 8500 2600 3730 350 12.5 2 30 1
VND-8000 8000 10600 2800 4070 350 15 2 30 1

Note : Technical Specifications Are Subject To Change With Respect To Continuous Development.

Note : We also provide the above equipment in cGMP.
