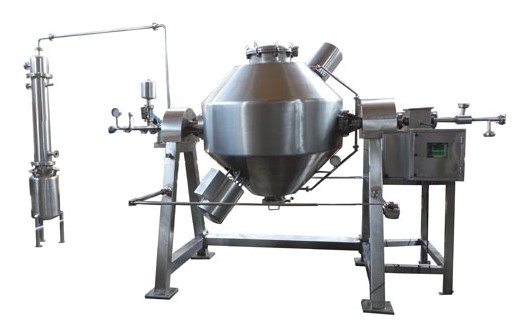

Roto Cone Vacuum Dryer is suitable for vacuum drying of materials which need to be dried at lower temperatures to avoid oxidation.
The RCVD can also be equipped with lump breakers for breaking larger lumps. This machine incorporates the principles of reduced drying time, reduced exposure to product,easier cleaning and continuous closed vacuum system.
Note : We also provide the above equipment in cGMP.
| Capacity Ltrs. Total Volume | Dimensions(mm) | Motor (HP) | Heat Exchanger M2 | |||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | H1 | H2 | H3 | |||
| 60 | 500 | 300 | 200 | 150 | 100 | 150 | 1.5 | 1 |
| 115 | 600 | 300 | 200 | 200 | 190 | 200 | 2.0 | 1 |
| 200 | 700 | 300 | 200 | 260 | 225 | 300 | 3.0 | 1 |
| 300 | 800 | 300 | 200 | 275 | 250 | 350 | 3.0 | 2 |
| 400 | 950 | 300 | 200 | 275 | 325 | 400 | 3.0 | 2 |
| 500 | 1000 | 400 | 200 | 320 | 300 | 400 | 3.0 | 2 |
| 600 | 1050 | 400 | 200 | 350 | 350 | 400 | 5.0 | 4 |
| 750 | 1100 | 400 | 200 | 375 | 475 | 450 | 5.0 | 4 |
| 1000 | 1200 | 400 | 200 | 450 | 500 | 550 | 7.5 | 4 |
| 1250 | 1300 | 400 | 200 | 450 | 550 | 600 | 7.5 | 5 |
| 1500 | 1350 | 450 | 250 | 560 | 600 | 600 | 10.0 | 7.5 |
| 2000 | 1450 | 450 | 250 | 650 | 650 | 650 | 12.5 | 7.5 |
| 3000 | 1750 | 450 | 250 | 700 | 700 | 700 | 25 | 10 |
